TrafFix Water-Wall Water Filled Barrier

72"L X 32"H X 18"W White TrafFix Water-Wall Water-Filled Barrier w/ 52" Tall Fence Panel

$72\"L X 32\"H X 18\"W White TrafFix Water-Wall Water-Filled Barrier w/ 52\" Tall Fence Panel$

Item #:TWW-W-WWF

Choose Color:

White White
Orange Orange

Available Colors:

White
Orange

Choose Barricade Fence:

Without Optional Fence +Add Optional Fence

Available Barricade Fence:

Without Optional Fence
Add Optional Fence

In Stock - Ships Tomorrow
Share

$775.00	Save 8% $710.00	Save 15% $655.00
Quantity 1-25	Quantity 26-74	Quantity 75+

Quick Facts:

Water Wall is 6' long, 18" wide and 32" tall
Approximately 80 lbs. each (empty weight)
Water Filled Barriers Weigh approx. 1,100 lbs filled with water
Two Colors to choose from - Hi-Viz Safety Orange or White

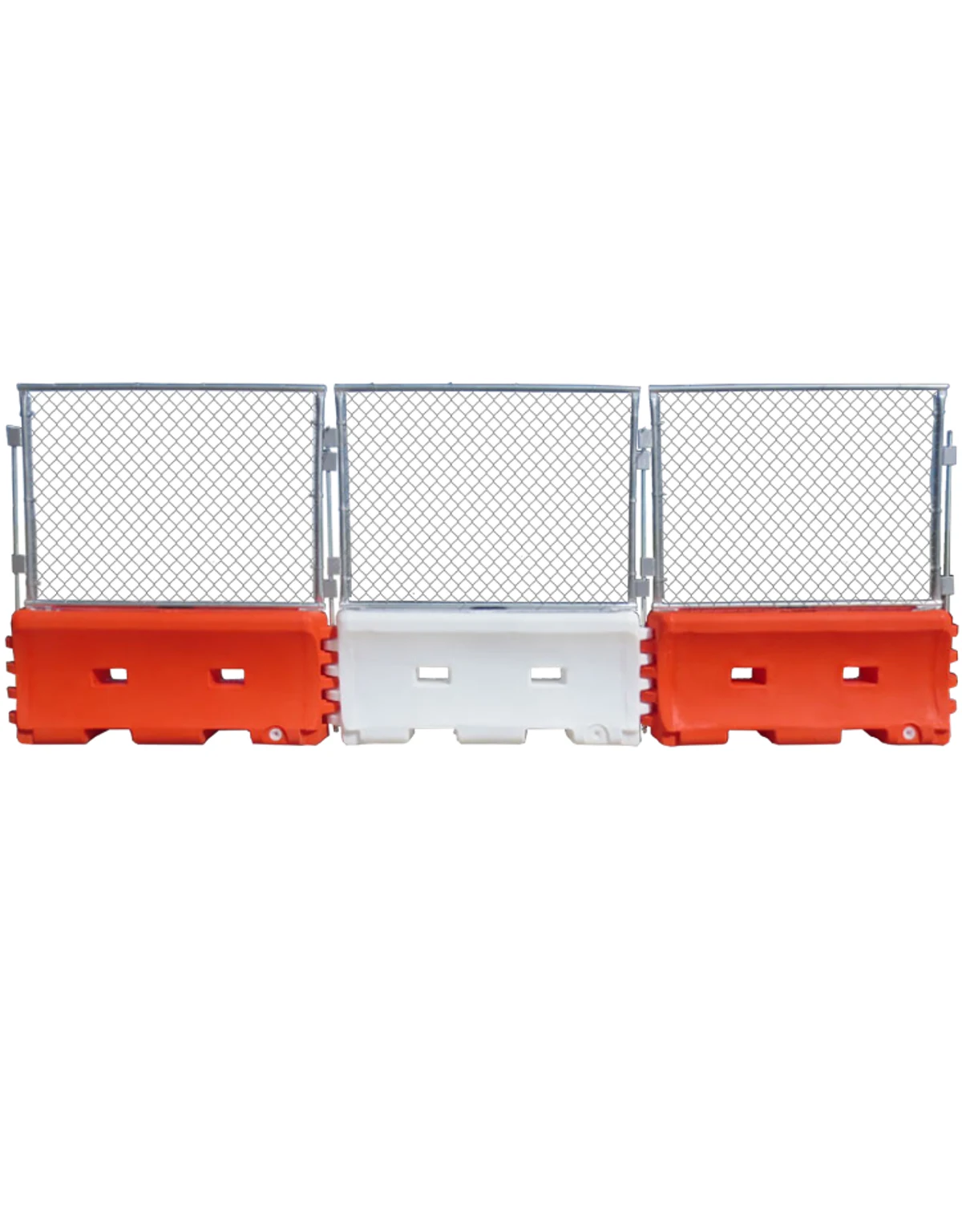

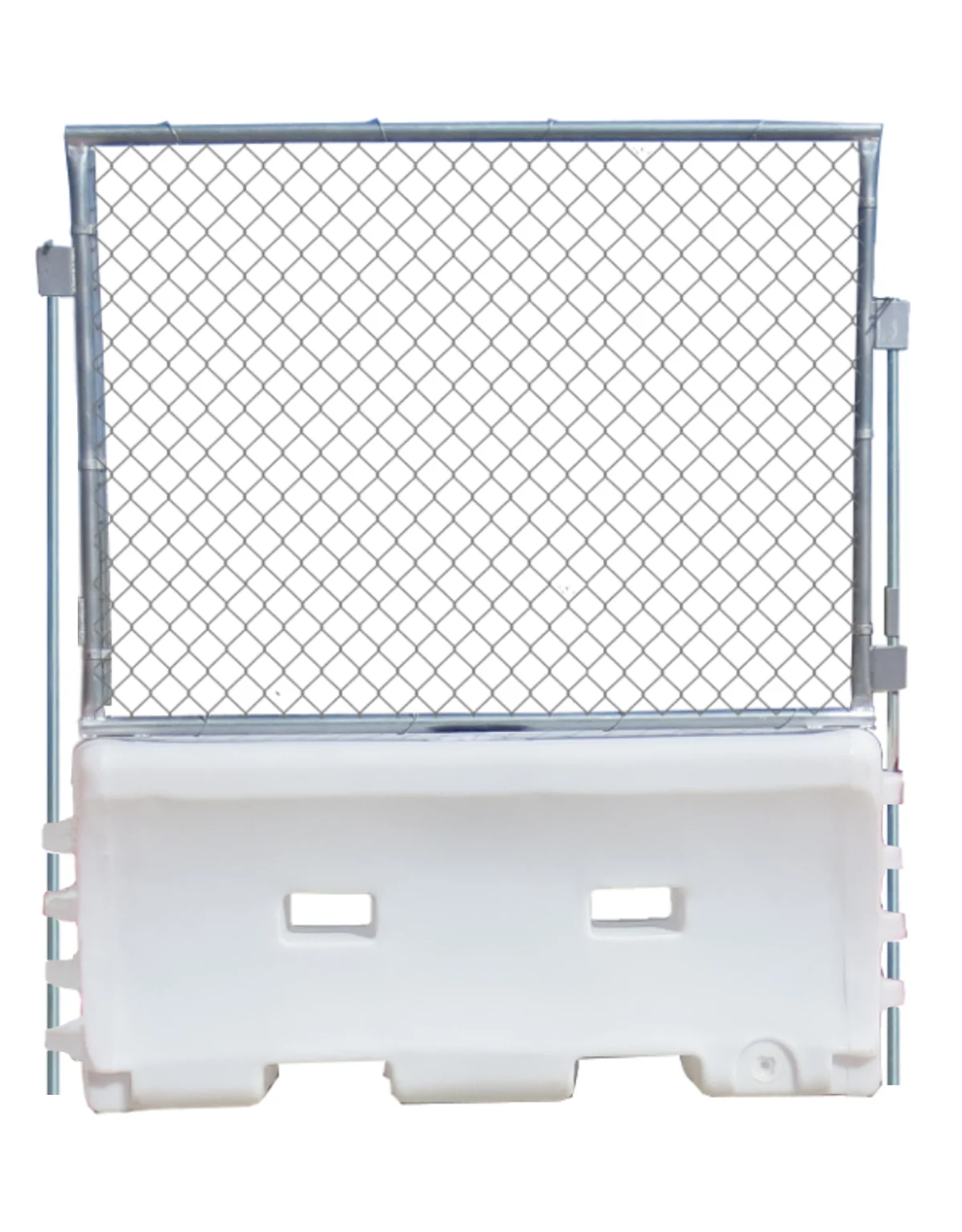

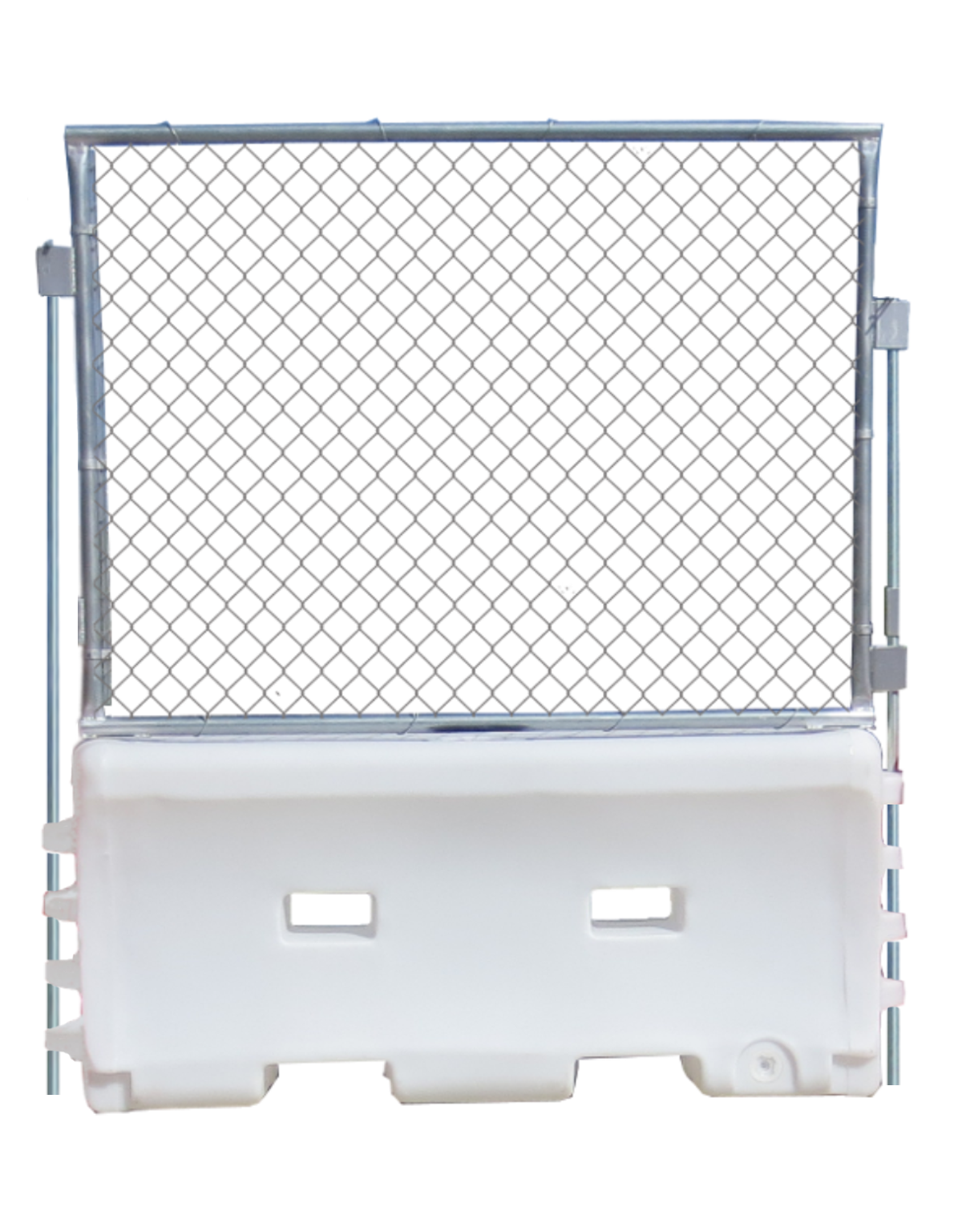

Available With or Without Optional 52" tall Chain Link Fence Panels
Optional 90-Degree Connector Pin to create right angle barrier walls (p/n 45032-WW90)

In Stock - Ships Tomorrow
Share
Quick Facts:
- Water Wall is 6' long, 18" wide and 32" tall
- Approximately 80 lbs. each (empty weight)
- Water Filled Barriers Weigh approx. 1,100 lbs filled with water
- Two Colors to choose from - Hi-Viz Safety Orange or White
- Available With or Without Optional 52" tall Chain Link Fence Panels
- Optional 90-Degree Connector Pin to create right angle barrier walls (p/n 45032-WW90)

- Quantity
- How soon will it arrive?

Volume Pricing:

Quantity 1-25	Save 9% Quantity 26-74	Save 18% Quantity 75+
$775.00	$710.00	$655.00

Description

TrafFix Water-Wall™: High-Performance Traffic Control

The TrafFix Water-Wall™ Barrier is a cutting-edge, impact-resistant LCD solution designed to enhance safety in work zones, construction sites, and event perimeters. Engineered for durability, this modular system offers a lightweight design (80 lbs) for rapid deployment when empty, while providing exceptional stability and crash attenuation (1,100 lbs) when filled with water.

Crafted from durable Low-Density Polyethylene (LDPE), the Water-Wall minimizes cracking and breaking while resisting UV fading. The innovative double-wall knuckle design minimizes breakage at hinge points, while the interlocking steel connection pin allows sections to pivot 30 degrees, making it ideal for creating curved walls or right angles.

Key Features & Benefits:

MASH Compliant: Meets MASH TL-1 test requirements when properly ballasted and interconnected with optional steel reinforcements.
Smart Design: Features a large 8" fill hole with a twist-lock cap for fast filling and a tamper-resistant corner drain plug that opens in just 2½ turns.
Heavy Stability: Weighs 1,100 lbs when filled to resist displacement from wind or traffic, yet weighs only 80 lbs empty for easy transport.
Flexible Configuration: The unique hinge design allows for a 30° pivot between sections to follow road curvature.
Site-Ready: Molded-in forklift/pallet jack slots ensure easy movement and positioning by work crews.

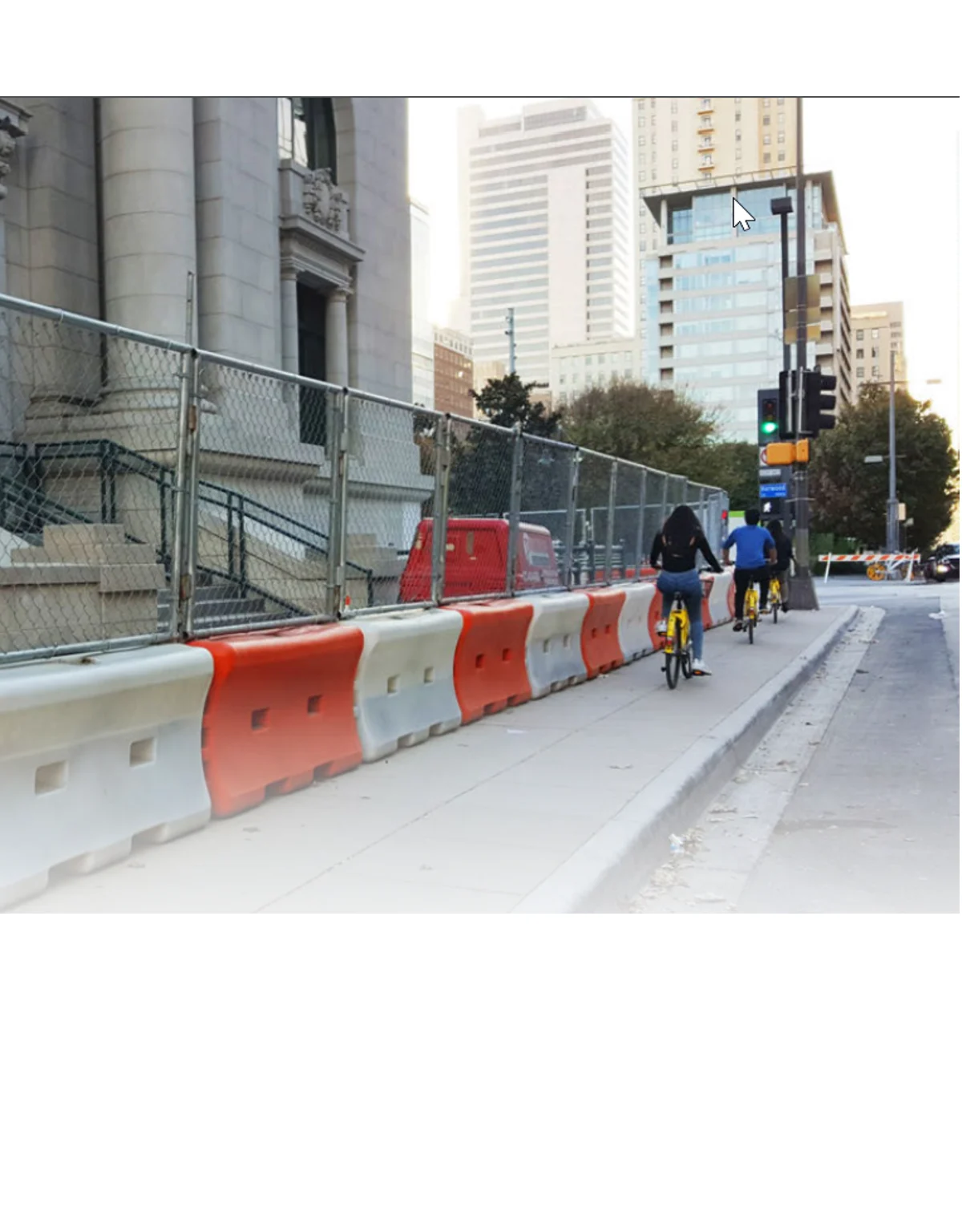

Versatile Applications: Ideal for highways, work zones, crowd control, and perimeter security in Orange or White.

Specifications:

Dimensions: 6' Length x 18" Width x 32" Height
Weight: 80 lbs (Empty) / ~1,100 lbs (Filled)
Material: Durable Low-Density Polyethylene
Wall Thickness: Double-wall knuckle design to prevent bulging
